DolphinDB 股票高频行情插件最佳实践

安装插件前，需要登录有创建库表权限的账号。执行如下代码登录默认的管理员账号：

login("admin", "123456")

执行 listRemotePlugins 函数，即可查看当前 DolphinDB 所支持的插件版本信息。

listRemotePlugins();          // 所有插件的版本信息
listRemotePlugins("CSM");     // CSM 插件的版本信息

返回值为 1 行 2 列的表格，分别是插件名及其对应的版本信息，如图 1-1：

在联网环境下，执行 installPlugin 函数，则可以下载到与当前 server 版本适配的 CSM 插件文件，插件文件包括插件描述文件及插件的二进制文件；若执行 installPlugin 函数获取插件失败，可以登录 DolphinDB 插件市场，手动下载对应版本的 CSM 插件上传到服务器的 plugins 目录下，可通过 getPluginDir 函数查询目录。

installPlugin("CSM")

installPlugin 函数若正常返回，则代表下载成功，其返回值为插件描述文件（PluginCSM.txt）的安装路径，如：

/path_to_dolphindb_server/server/plugins/CSM/PluginCSM.txt

installPlugin 函数实际上是完成从远程文件服务器拉取插件文件到 DolphinDB server 所在的服务器，因此需要一定的时间，耐心等待安装完成即可。

在脚本中调用插件相关的接口前，需要先加载插件。

在 GUI（或 VS Code、Web UI）等操作手册中执行 loadPlugin 函数加载插件。以下示例中直接使用了插件名，也可以使用相对路径 ./plugins/CSM/PluginCSM.txt 或 1.1 中返回的绝对路径 /path_to_dolphindb_server/server/plugins/CSM/PluginCSM.txt。

loadPlugin("CSM")

loadPlugin 函数正常返回则插件加载成功，以 VS Code 为例，首次加载成功后返回的信息如下图，返回值是 CSM 插件提供的所有函数，至此插件安装与加载已全部完成。

此外，需要注意，如果重复执行 loadPlugin 加载插件，会抛出模块已经被使用的错误提示，因为节点启动后，只需加载一次 CSM 插件，即可在任意会话中调用该插件提供的函数。错误提示如下：

The module [CSM] is already in use.

可以通过 try-catch 语句捕获这个错误，避免因为插件已加载而中断后续脚本代码的执行：

try{ loadPlugin("CSM") } catch(ex){print ex}

此外，若节点重启，则需要重新加载插件。

本小节介绍连接 CSM 以及创建流数据表和 DFS 数据库表的关键参数配置。

// 配置账户信息
USERNAME = "XXXX"
PASSWORD = "XXXX"
HOST = ["XXXX"]
PORT = [XXXX]
opt = dict(`ReceivedTime`OutputElapsed, [true, true])

rawStreamCapacity = 2000000

// 原始数据进入的流数据表表名及类型
rawStreamNames = ["sseQuotation", "szseQuotation", "sseTick", "szseTick"]
csmSubTypes = ["SSEL2_Quotation", "SZSEL2_Quotation", "SSEL2_Tick", "SZSEL2_Tick"]

// 原始数据标准化后进入的流数据表表名
stdStreamNames = ["entrustStream", "tradeStream", "snapshotStream", "orderqueueStream", "tickStream"]

// RSE 输出流表名
rseOutputStreamName = "snapshotStreamRse"

// 标准化数据入库的数据库名
stdDfsDbName = "dfs://level2_stock_db"

// 标准化数据入库的数据表名
stdDfsTbNames = ["entrust", "trade", "snapshot", "orderqueue", "tick"]

为保证本文的示例脚本能够反复执行，特提供了以下流环境清理脚本。

由于相同的流数据表名和订阅无法进行重复定义，因此先取消相关订阅并清除需要用到的流数据表。

use ops

//清理环境（循环进行多张流表批量清理，含持久化文件）
allStreamNames = rawStreamNames.append!(stdStreamNames).append!(rseOutputStreamName)
for(tbName in allStreamNames){
    try{ unsubscribeTable(tableName=tbName) } catch(ex){}  // 移除该表所有订阅
    try{ dropStreamTable(tbName, force=true) }catch(ex){}  //删除流表
}

用户配置 CSM 账户信息后，使用 CSM::connect 函数创建一个和 CSM 行情服务器之间的连接。

//清理可能存在的旧连接，确保环境恢复到初始状态
try{
    h = CSM::getHandle()
    CSM::close(h)
}catch(ex){}
go

//创建连接
handler = CSM::connect(USERNAME, PASSWORD, HOST, PORT, opt)

本小节演示如何创建原始行情流数据表、标准化行情流数据表以及标准化行情分布式表。

for(i in 0..(size(csmSubTypes)-1)){
    schema = CSM::getSchema(csmSubTypes[i])   //查询表结构
    enableTableShareAndPersistence(
        table=streamTable(rawStreamCapacity:0, schema[`name], schema[`type]),
        tableName=rawStreamNames[i],
        cacheSize=rawStreamCapacity,
        preCache=0)
    print(">>> 创建原始流表: " + rawStreamNames[i])
}

// entrustStream
if(!existsStreamTable("entrustStream")){
    schema_tb = table(
        array(SYMBOL, 0) as security_id,
        array(SYMBOL, 0) as exchange,
        array(DATE, 0) as trade_date,
        array(TIME, 0) as trade_time,
        array(INT, 0) as channel_no,
        array(LONG, 0) as appl_seq,
        array(DOUBLE, 0) as order_price,
        array(DOUBLE, 0) as order_qty,
        array(SYMBOL, 0) as order_type,
        array(SYMBOL, 0) as side,
        array(LONG, 0) as order_no,
        array(LONG, 0) as rec_id,
        array(DOUBLE, 0) as trade_qty,
        array(NANOTIMESTAMP, 0) as received_time,
        array(LONG, 0) as per_penetration_time,
        array(TIMESTAMP, 0) as reveied_time1
    )
    colDefs = schema(schema_tb).colDefs
    enableTableShareAndPersistence(
        table=streamTable(10000:0, colDefs.name, colDefs.typeString),
        tableName="entrustStream",
        cacheSize=5000000,
        preCache=0)
    print(">>> 创建标准化流表: entrustStream")
}
go
setStreamTableTimestamp(entrustStream, "reveied_time1")

//创建标准化 DFS 库
if(!existsDatabase(stdDfsDbName)){
    dbDate = database(, partitionType=VALUE, partitionScheme=2026.01.01..2026.07.31)
    dbCode = database(, partitionType=HASH, partitionScheme=[SYMBOL, 50])
    dbStd = database(directory=stdDfsDbName, partitionType=COMPO, partitionScheme=[dbDate, dbCode], engine='TSDB', atomic='CHUNK')
    print(">>> 创建标准化 DFS 库: " + stdDfsDbName)
} else {
    dbStd = database(stdDfsDbName)
}

// entrust
if(!existsTable(stdDfsDbName, "entrust")){
    schema_tb = table(
        array(SYMBOL, 0) as security_id,
        array(SYMBOL, 0) as exchange,
        array(DATE, 0) as trade_date,
        array(TIME, 0) as trade_time,
        array(INT, 0) as channel_no,
        array(LONG, 0) as appl_seq,
        array(DOUBLE, 0) as order_price,
        array(DOUBLE, 0) as order_qty,
        array(SYMBOL, 0) as order_type,
        array(SYMBOL, 0) as side,
        array(LONG, 0) as order_no,
        array(LONG, 0) as rec_id,
        array(DOUBLE, 0) as trade_qty,
        array(TIMESTAMP, 0) as update_time
    )
    dbStd.createPartitionedTable(
        table=schema_tb,
        tableName="entrust",
        partitionColumns=`trade_date`security_id,
        sortColumns=`security_id`trade_time
    )
    print(">>> 创建标准化DFS表: entrust")
}

首先，针对快照数据的增量计算需求，创建两个 ReactiveStateEngine（sse_snapshot_deal_engine / szse_snapshot_deal_engine），都以 Symbol 为 key 维护每只股票的状态，统一输出到 snapshotStreamRse 中间流表。

RSE 引擎的核心机制是 prev 函数——它能访问当前 key 上一笔输入的某个字段值。基于此，引擎主要处理了两类计算：

1. 涨跌价格（沪深逻辑不同）

• 上交所的原始 Quotation 快照不提供现成涨跌字段，需要通过 RSE 手动计算 dif_price1 和 dif_price2。dif_price1 字段需要在09:25 集合竞价结束后，用 LastPrice（当前最新价/开盘价）减去 PreClosePrice（昨收价），得到开盘价差。dif_price2 在 09:25——09:30 连续竞价开始前用 dif_price1（开盘价差）表示，09:30 后用 LastPrice - prev(LastPrice) 计算相邻两次快照之间的最新价变化量。核心计算代码展示如下：

  double(NULL) as price_up,            // 上交所不提供涨停价，填NULL
  double(NULL) as price_down,           // 上交所不提供跌停价，填NULL
  iif(time(Time)>=09:25:00, LastPrice - PreClosePrice, 0) as dif_price1,
  iif(time(Time)<09:25:00, 0, iif((time(Time)<09:30:00 and LastPrice!=0),
      LastPrice - PreClosePrice, LastPrice-prev(LastPrice))) as dif_price2,

• 深交所的 Quotation 快照自带涨跌字段，RSE 只需直接映射，核心代码展示如下：

  PriceUpLimit as price_up,             // 深交所提供涨停价
  PriceDownLimit as price_down,         // 深交所提供跌停价
  PriceUpdown1 as dif_price1,           // 深交所直接提供涨跌价差1
  PriceUpdown2 as dif_price2,           // 深交所直接提供涨跌价差2

2. 累计量增量（沪深逻辑相同）

在原始字段中，TotalNO（成交笔数）、TotalVolume（成交量）、TotalAmount（成交金额）是开市以来的累计值，每笔快照都包含从 09:30 到当前时刻的总和。为计算"本周期内新增了多少"，使用 prev 做差值，核心代码展示如下：

iif(isNull(prev(TotalNO)), TotalNO, TotalNO - prev(TotalNO)) as trade_num,
iif(isNull(prev(TotalVolume)), TotalVolume, TotalVolume - prev(TotalVolume)) as trade_qty,
iif(isNull(prev(TotalAmount)), TotalAmount, TotalAmount - prev(TotalAmount)) as trade_amt,

• prev(TotalNO) 返回该股票上一笔快照的 TotalNO 值。如果是该股票的第一笔快照（isNull(prev(TotalNO)) 为 true），直接取当前值作为增量起点。

• 否则 TotalNO - prev(TotalNO) 就是本周期内的新增成交笔数。

• 成交量和成交额同理。

创建 RSE 引擎完整代码如下：

//创建RSE引擎 (处理沪深快照)
metrics_sse = <[
    'SH' as exchange,
    today() as trade_date,
    time(Time) as trade_time,
    PreClosePrice as pre_close,
    OpenPrice as open_price,
    HighPrice as high_price,
    LowPrice as low_price,
    LastPrice as last_price,
    double(NULL) as price_up,
    double(NULL) as price_down,
    iif(time(Time)>=09:25:00, LastPrice - PreClosePrice, 0) as dif_price1,
    iif(time(Time)<09:25:00, 0, iif((time(Time)<09:30:00 and LastPrice!=0), LastPrice - PreClosePrice, LastPrice-prev(LastPrice))) as dif_price2,
    ClosePrice as close_price,
    TotalNO as total_num,
    TotalVolume as total_qty,
    TotalAmount as total_amt,
    double(NULL) as peratio1,
    double(NULL) as peratio2,
    SellLevelNo as sell_level_num,
    TotalSellOrderVolume as total_sell_qty,
    WtAvgSellPrice as wtavg_sell_price,
    SellPrice as sell_price,
    SellVolume as sell_qty,
    TotalSellOrderNo as sell_num,
    BuyLevelNo as buy_level_num,
    TotalBuyOrderVolume as total_buy_qty,
    WtAvgBuyPrice as wtavg_buy_price,
    BuyPrice as buy_price,
    BuyVolume as buy_qty,
    TotalBuyOrderNo as buy_num,
    TradeStatus as phase_code,
    double(NULL) as nav,
    IOPV as iopv,
    double(NULL) as premium_rate,
    iif(isNull(prev(TotalNO)), TotalNO, TotalNO - prev(TotalNO)) as trade_num,
    iif(isNull(prev(TotalVolume)), TotalVolume, TotalVolume - prev(TotalVolume)) as trade_qty,
    iif(isNull(prev(TotalAmount)), TotalAmount, TotalAmount - prev(TotalAmount)) as trade_amt,
    ETFBuyNo as etf_buy_num,
    ETFBuyVolume as etf_buy_qty,
    ETFBuyAmount as etf_buy_amt,
    ETFSellNo as etf_sell_num,
    ETFSellVolume as etf_sell_qty,
    ETFSellAmount as etf_sell_amt,
    YTM as ytm,
    TotalBuyNo as total_buy_num,
    TotalSellNo as total_sell_num,
    WithdrawBuyNo as withdraw_buy_num,
    WithdrawBuyVolume as withdraw_buy_qty,
    WithdrawBuyAmount as withdraw_buy_amt,
    WithdrawSellNo as withdraw_sell_num,
    WithdrawSellVolume as withdraw_sell_qty,
    WithdrawSellAmount as withdraw_sell_amt,
    MaxBuyDuration as max_buy_duration,
    MaxSellDuration as max_sell_duration,
    BuyOrderNo as buy_order_num,
    SellOrderNo as sell_order_num,
    TotalWarrantExecVol as total_warrant_exec_vol,
    WarrantDownLimit as warrant_down_limit,
    WarrantUpLimit as warrant_up_limit,
    ReceivedTime as received_time,
    perPenetrationTime as per_penetration_time]>

try{dropStreamEngine("sse_snapshot_deal_engine")} catch(ex){}
createReactiveStateEngine(name="sse_snapshot_deal_engine",
    metrics=metrics_sse,
    dummyTable=sseQuotation,
    outputTable=snapshotStreamRse,
    keyColumn="Symbol")

metrics_szse = <[
    "SZ" as exchange,
    today() as trade_date,
    time(Time) as trade_time,
    PreClosePrice as pre_close,
    OpenPrice as open_price,
    HighPrice as high_price,
    LowPrice as low_price,
    LastPrice as last_price,
    PriceUpLimit as price_up,
    PriceDownLimit as price_down,
    PriceUpdown1 as dif_price1,
    PriceUpdown2 as dif_price2,
    ClosePrice as close_price,
    TotalNo as total_num,
    TotalVolume as total_qty,
    TotalAmount as total_amt,
    PERatio1 as peratio1,
    PERatio2 as peratio2,
    SellLevelNo as sell_level_num,
    TotalSellOrderVolume as total_sell_qty,
    WtAvgSellPrice as wtavg_sell_price,
    SellPrice as sell_price,
    SellVolume as sell_qty,
    TotalSellOrderNo as sell_num,
    BuyLevelNo as buy_level_num,
    TotalBuyOrderVolume as total_buy_qty,
    WtAvgBuyPrice as wtavg_buy_price,
    BuyPrice as buy_price,
    BuyVolume as buy_qty,
    TotalBuyOrderNo as buy_num,
    SecurityPhaseTag as phase_code,
    NAV as nav,
    IOPV as iopv,
    PremiumRate as premium_rate,
    iif(isNull(prev(TotalNO)), TotalNO, TotalNO - prev(TotalNO)) as trade_num,
    iif(isNull(prev(TotalVolume)), TotalVolume, TotalVolume - prev(TotalVolume)) as trade_qty,
    iif(isNull(prev(TotalAmount)), TotalAmount, TotalAmount - prev(TotalAmount)) as trade_amt,
    int(NULL) as etf_buy_num,
    double(NULL) as etf_buy_qty,
    double(NULL) as etf_buy_amt,
    int(NULL) as etf_sell_num,
    double(NULL) as etf_sell_qty,
    double(NULL) as etf_sell_amt,
    double(NULL) as ytm,
    long(NULL) as total_buy_num,
    long(NULL) as total_sell_num,
    int(NULL) as withdraw_buy_num,
    double(NULL) as withdraw_buy_qty,
    double(NULL) as withdraw_buy_amt,
    int(NULL) as withdraw_sell_num,
    double(NULL) as withdraw_sell_qty,
    double(NULL) as withdraw_sell_amt,
    double(NULL) as max_buy_duration,
    double(NULL) as max_sell_duration,
    int(NULL) as buy_order_num,
    int(NULL) as sell_order_num,
    long(NULL) as total_warrant_exec_vol,
    double(NULL) as warrant_down_limit,
    double(NULL) as warrant_up_limit,
    ReceivedTime as received_time,
    perPenetrationTime as per_penetration_time]>

try{dropStreamEngine("szse_snapshot_deal_engine")} catch(ex){}
createReactiveStateEngine(name="szse_snapshot_deal_engine",
    metrics=metrics_szse,
    dummyTable=szseQuotation,
    outputTable=snapshotStreamRse,
    keyColumn="Symbol")

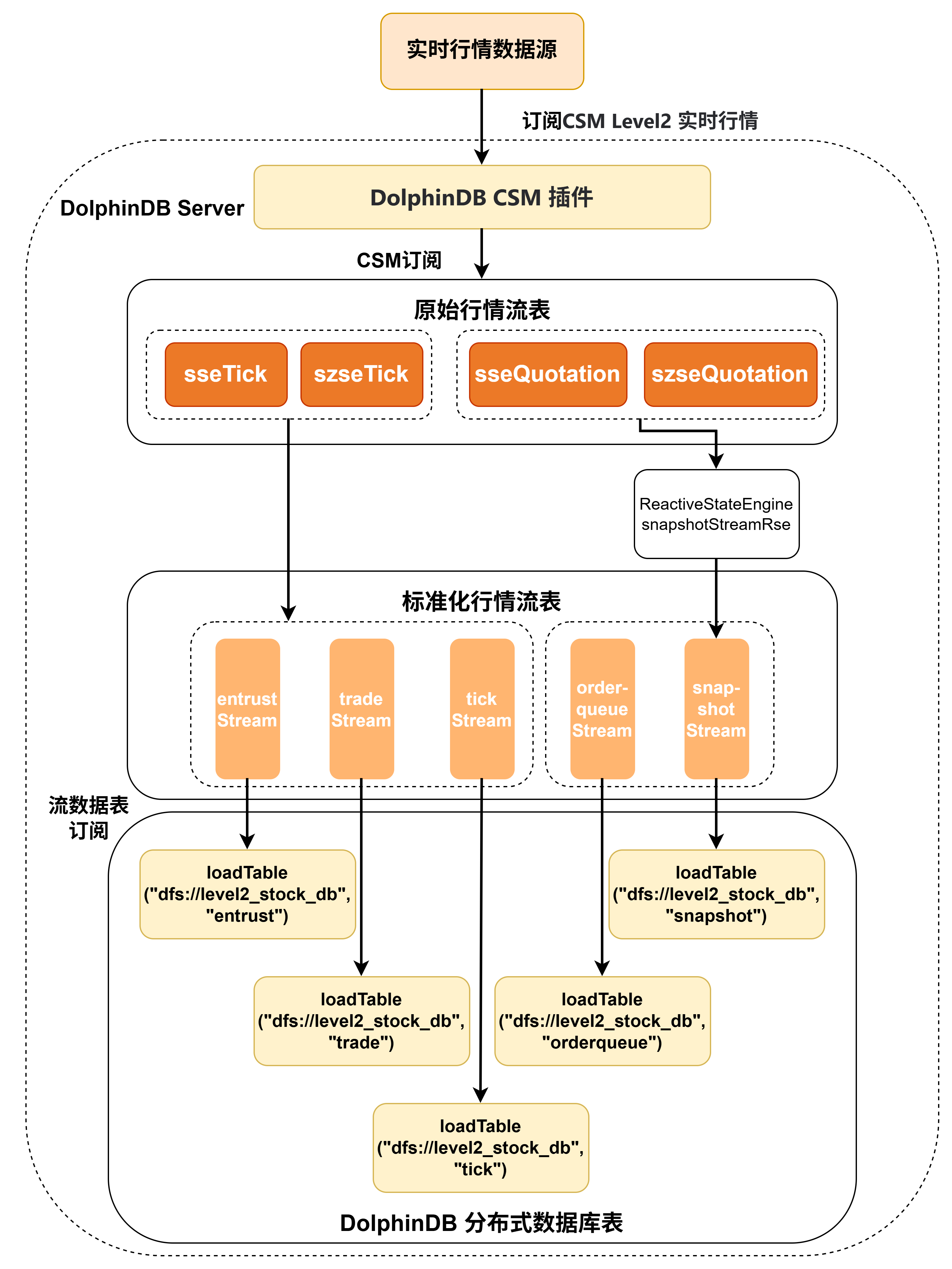

再通过 7 条订阅将 4 张原始流表的分发到 6 张标准化流表：Tick 类数据由 SSE/SZSE 三合一 handler 拆分为 entrust/trade/tick 三路写入，Quotation 类数据一路经订单队列 handler 写入 orderqueueStream，另一路经 RSE 引擎加 .SH/.SZ 后缀 handler 写入 snapshotStream，完成沪深两市数据合并与字段统一。

// 先取消旧订阅
try{unsubscribeTable(tableName="sseTick", actionName="sse_tick_deal")} catch(ex){}
try{unsubscribeTable(tableName="sseQuotation", actionName="sse_orderqueue_deal")} catch(ex){}
try{unsubscribeTable(tableName="sseQuotation", actionName="sse_snapshot_deal")} catch(ex){}
try{unsubscribeTable(tableName="szseTick", actionName="szse_tick_deal")} catch(ex){}
try{unsubscribeTable(tableName="szseQuotation", actionName="szse_orderqueue_deal")} catch(ex){}
try{unsubscribeTable(tableName="szseQuotation", actionName="szse_snapshot_deal")} catch(ex){}
try{unsubscribeTable(tableName="snapshotStreamRse", actionName="snapshot_rse_deal")} catch(ex){}

//标准化订阅
// SSE Tick → entrust + trade + tick
subscribeTable(tableName="sseTick", actionName="sse_tick_deal", offset=-1,
    handler=sse_tickall_handler{"entrustStream", "tradeStream", "tickStream"},
    msgAsTable=true, batchSize=10000, throttle=0.01)

// SSE Quotation → orderqueue
subscribeTable(tableName="sseQuotation", actionName="sse_orderqueue_deal",
    handler=sse_orderqueue_handler{"orderqueueStream"},
    msgAsTable=true, batchSize=10000, throttle=0.01)

// SSE Quotation → RSE → snapshotStreamRse
subscribeTable(tableName="sseQuotation", actionName="sse_snapshot_deal", offset=-1,
    handler=append!{getStreamEngine("sse_snapshot_deal_engine")},
    msgAsTable=true, batchSize=10000, throttle=0.01)

// SZSE Tick → entrust + trade + tick
subscribeTable(tableName="szseTick", actionName="szse_tick_deal", offset=-1,
    handler=szse_tickall_handler{"entrustStream", "tradeStream", "tickStream"},
    msgAsTable=true, batchSize=10000, throttle=0.01)

// SZSE Quotation → orderqueue
subscribeTable(tableName="szseQuotation", actionName="szse_orderqueue_deal",
    handler=szse_orderqueue_handler{"orderqueueStream"},
    msgAsTable=true, batchSize=10000, throttle=0.01)

// SZSE Quotation → RSE → snapshotStreamRse
subscribeTable(tableName="szseQuotation", actionName="szse_snapshot_deal",
    handler=append!{getStreamEngine("szse_snapshot_deal_engine")},
    msgAsTable=true, batchSize=10000, throttle=0.01)

// snapshotStreamRse → snapshotStream (加.SH后缀)
subscribeTable(tableName="snapshotStreamRse", actionName="snapshot_rse_deal",
    handler=snapshotRse_handler{"snapshotStream"},
    msgAsTable=true, batchSize=10000, throttle=0.01)

这里仅以 SSE 逐笔委托 handler 为例展示标准化 handler 函数定义代码：

// SSE 逐笔委托 handler
def sse_entrust_handler(mutable entrustStream, msg){
    data =
        select
            Symbol+".SH" as security_id,
            "SH" as exchange,
            today() as trade_date,
            time(TickTime) as trade_time,
            Channel as channel_no,
            RecID as appl_seq,
            TickPrice as order_price,
            TickVolume as order_qty,
            string(TickType) as order_type,
            TickBSFlag as side,
            long(NULL) as order_no,
            RecID as rec_id,
            TradeAmount as trade_qty,
            ReceivedTime as received_time,
            perPenetrationTime as per_penetration_time
        from msg
        where string(TickType) in [`A, `S, `D]
        objByName(entrustStream).append!(data)
}

最后，5 张标准化流表各自绑定 InsertHandler，在写入前丢弃 received_time 等元数据字段并追加 update_time，以 batchSize=50000、throttle=0.01s 的批量方式写入对应的 DFS 分区表。

// 定义5个落库handler
def entrustInsertHandler(tb, mutable msg){
    data = select security_id, exchange, trade_date, trade_time, channel_no, appl_seq,
        order_price, order_qty, order_type, side, order_no, rec_id, trade_qty,
        now() as update_time from msg
    tableInsert(tb, data)
}
def tradeInsertHandler(tb, mutable msg){
    data = select security_id, exchange, trade_date, trade_time, channel_no, appl_seq,
        trade_price, trade_qty, trade_amt, buy_no, sell_no, side, trade_type, trade_no,
        now() as update_time from msg
    tableInsert(tb, data)
}
def snapshotInsertHandler(tb, mutable msg){
    data = select security_id, exchange, trade_date, trade_time, pre_close, open_price, high_price,
        low_price, last_price, price_up, price_down, dif_price1, dif_price2, close_price,
        total_num, total_qty, total_amt, peratio1, peratio2, sell_level_num, total_sell_qty,
        wtavg_sell_price, sell_price, sell_qty, sell_num, buy_level_num, total_buy_qty,
        wtavg_buy_price, buy_price, buy_qty, buy_num, phase_code, nav, iopv, premium_rate,
        trade_num, trade_qty, trade_amt, etf_buy_num, etf_buy_qty, etf_buy_amt,
        etf_sell_num, etf_sell_qty, etf_sell_amt, ytm, total_buy_num, total_sell_num,
        withdraw_buy_num, withdraw_buy_qty, withdraw_buy_amt, withdraw_sell_num,
        withdraw_sell_qty, withdraw_sell_amt, max_buy_duration, max_sell_duration,
        buy_order_num, sell_order_num, total_warrant_exec_vol, warrant_down_limit,
        warrant_up_limit,
        now() as update_time from msg
    tableInsert(tb, data)
}
def orderqueueInsertHandler(tb, mutable msg){
    data = select security_id, exchange, trade_date, trade_time, last_price, side, order_price,
        order_qty1, order_num, order_no, order_qtys, level_num,
        now() as update_time from msg
    tableInsert(tb, data)
}
def tickInsertHandler(tb, mutable msg){
    data = select security_id, exchange, trade_date, trade_time, msg_type, data_type, channel_no,
        appl_seq, price, qty, buy_order, sell_order, side,
        now() as update_time from msg
    tableInsert(tb, data)
}

// 订阅 entrustStream → DFS entrust
try{unsubscribeTable(tableName="entrustStream", actionName="entrustStream_2dfs")} catch(ex){}
subscribeTable(tableName="entrustStream", actionName="entrustStream_2dfs", offset=-1,
    handler=entrustInsertHandler{loadTable(stdDfsDbName, "entrust")},
    msgAsTable=true, batchSize=50000, throttle=0.01, reconnect=true)

// 订阅 tradeStream → DFS trade
try{unsubscribeTable(tableName="tradeStream", actionName="tradeStream_2dfs")} catch(ex){}
subscribeTable(tableName="tradeStream", actionName="tradeStream_2dfs", offset=-1,
    handler=tradeInsertHandler{loadTable(stdDfsDbName, "trade")},
    msgAsTable=true, batchSize=50000, throttle=0.01, reconnect=true)

// 订阅 snapshotStream → DFS snapshot
try{unsubscribeTable(tableName="snapshotStream", actionName="snapshotStream_2dfs")} catch(ex){}
subscribeTable(tableName="snapshotStream", actionName="snapshotStream_2dfs", offset=-1,
    handler=snapshotInsertHandler{loadTable(stdDfsDbName, "snapshot")},
    msgAsTable=true, batchSize=50000, throttle=0.01, reconnect=true)

// 订阅 orderqueueStream → DFS orderqueue
try{unsubscribeTable(tableName="orderqueueStream", actionName="orderqueueStream_2dfs")} catch(ex){}
subscribeTable(tableName="orderqueueStream", actionName="orderqueueStream_2dfs", offset=-1,
    handler=orderqueueInsertHandler{loadTable(stdDfsDbName, "orderqueue")},
    msgAsTable=true, batchSize=50000, throttle=0.01, reconnect=true)

// 订阅 tickStream → DFS tick
try{unsubscribeTable(tableName="tickStream", actionName="tickStream_2dfs")} catch(ex){}
subscribeTable(tableName="tickStream", actionName="tickStream_2dfs", offset=-1,
    handler=tickInsertHandler{loadTable(stdDfsDbName, "tick")},
    msgAsTable=true, batchSize=50000, throttle=0.01, reconnect=true)

参数说明：

• handler 参数为必选参数，是一元函数，用于处理订阅的数据。

• offset 参数为可选参数，是一个整数。若为正数，表示从历史消息的第 offset 条开始订阅，0 表示从头开始，-1 表示从最新消息开始。若未指定或为负数，默认从当前最新位置开始订阅。

• msgAsTable 参数为可选参数，是一个布尔值。为 true 时，handler 接收到的 msg 参数以表（table）形式传入；为 false 时以字典（字典/向量）形式传入。若未指定，默认为 true。

• batchSize 参数为可选参数，是一个整数。若为正数，表示未处理消息的数量达到 batchSize 时，handler 才会处理消息。若未指定或为非正数，每一批次的消息到达之后，handler 就会马上处理。

• throttle 参数为可选参数，是一个浮点数，单位为秒，默认值为 1。表示继上次 handler 处理消息之后，若 batchSize 条件一直未达到，多久后再次处理消息。如果没有指定 batchSize，throttle 即使指定也无效。 因此，达到 batchSize 设置的条件或者达到 throttle 设置的条件，才会向分布式数据库写入一次。

• reconnect 参数为可选参数，是一个布尔值。为 true 时，订阅因网络等原因断开后自动尝试重连；为 false 时断开后不再重连。若未指定，默认为 false。

使用 CSM::subscribe函数订阅指定类别的数据，行情数据将进入流数据表。

for(i in 0..(size(csmSubTypes)-1)){
    try {
        CSM::subscribe(handler, csmSubTypes[i], objByName(rawStreamNames[i]))
        print(">>> CSM订阅成功: " + csmSubTypes[i] + " → " + rawStreamNames[i])
    } catch(ex) {
        print("[ERROR] CSM订阅失败 " + csmSubTypes[i] + ": " + ex)
    }
}

运行过程中，可以调用 CSM::getStatus 函数查询 CSM 行情的接收情况。

CSM::getStatus(handler)

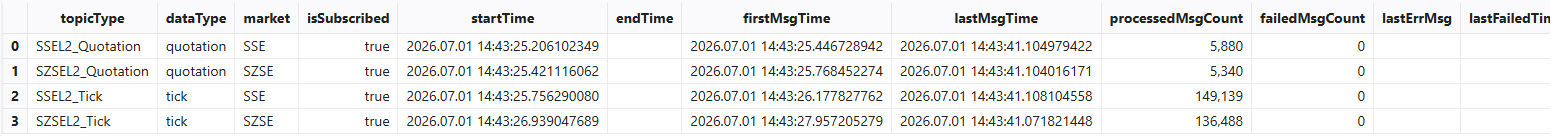

返回结果如图 2-2：

当在盘中启动时，可以看到 firstMsgTime 与 lastMsgTime 均不为空，lastMsgTime 表示当前收到最后一条数据的系统时刻。processedMsgCount 表示已处理的数据量。

由于长时间维持 CSM 插件连接状态可能导致内存占用量持续增长，用户可以调用定时作业函数设定 CSM 连接和关闭的定时任务，参考代码如下。运行前需要将 /执行启动脚本的完整路径/startup.dos 替换为本地保存启动脚本（startup.dos）和关闭脚本（closeCSM.dos）的绝对路径。

// 盘前初始化
scheduleJob(jobId=`daily_create_csm_connection, jobDesc="daily_create_csm_connection", jobFunc=run{"/执行启动脚本的完整路径/startup.dos"}, scheduleTime=08:30m, startDate=today(), endDate=2099.12.31, frequency='D')

// 盘后关闭连接
scheduleJob(jobId=`daily_close_csm_connection, jobDesc="daily_close_csm_connection", jobFunc=run{"/执行启动脚本的完整路径/closeCSM.dos"}, scheduleTime=17:30m, startDate=today(), endDate=2099.12.31, frequency='D')

注意事项：

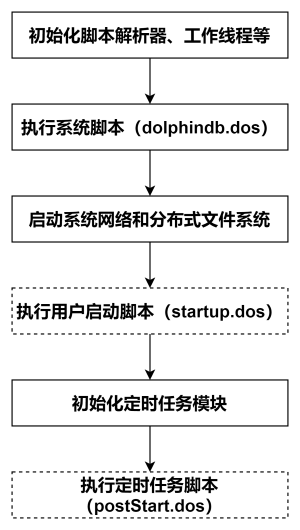

因为定时任务初始化时，会用到 CSM 插件里的函数，所以需要在启动时自动加载 CSM 插件。

可以通过配置参数 preloadModules=plugins::CSM 让节点启动时自动加载 CSM 插件。对于单节点，在 dolphindb.cfg 中配置 preloadModules 参数。对集群，在 controller.cfg 和 cluster.cfg 中配置 preloadModules 参数。
