DolphinDB 与 Python AirFlow 最佳实践

• 创建 snapshot 原始数据存储表：

  创建存储原始 snapshot 原始数据的库表，核心代码如下：

  module loadSnapshot::createSnapshotTable

  //创建 snapshot 原始数据存储库表
  def createSnapshot(dbName, tbName){
  	login("admin", "123456")
  	if(existsDatabase(dbName)){
  		dropDatabase(dbName)
  	}
  	db1 = database(, VALUE, 2020.01.01..2021.01.01)
  	db2 = database(, HASH, [SYMBOL, 50])
  	//按天和股票代码组合分区
  	db = database(dbName,COMPO,[db1,db2],engine='TSDB')
  	colName = ["SecurityID","DateTime","PreClosePx","OpenPx","HighPx","LowPx","LastPx","TotalVolumeTrade","TotalValueTrade","InstrumentStatus","BidPrice0","BidPrice1","BidPrice2","BidPrice3","BidPrice4","BidPrice5","BidPrice6","BidPrice7","BidPrice8","BidPrice9","BidOrderQty0","BidOrderQty1","BidOrderQty2","BidOrderQty3","BidOrderQty4","BidOrderQty5","BidOrderQty6","BidOrderQty7","BidOrderQty8","BidOrderQty9","BidNumOrders0","BidNumOrders1","BidNumOrders2","BidNumOrders3","BidNumOrders4","BidNumOrders5","BidNumOrders6","BidNumOrders7","BidNumOrders8","BidNumOrders9","BidOrders0","BidOrders1","BidOrders2","BidOrders3","BidOrders4","BidOrders5","BidOrders6","BidOrders7","BidOrders8","BidOrders9","BidOrders10","BidOrders11","BidOrders12","BidOrders13","BidOrders14","BidOrders15","BidOrders16","BidOrders17","BidOrders18","BidOrders19","BidOrders20","BidOrders21","BidOrders22","BidOrders23","BidOrders24","BidOrders25","BidOrders26","BidOrders27","BidOrders28","BidOrders29","BidOrders30","BidOrders31","BidOrders32","BidOrders33","BidOrders34","BidOrders35","BidOrders36","BidOrders37","BidOrders38","BidOrders39","BidOrders40","BidOrders41","BidOrders42","BidOrders43","BidOrders44","BidOrders45","BidOrders46","BidOrders47","BidOrders48","BidOrders49","OfferPrice0","OfferPrice1","OfferPrice2","OfferPrice3","OfferPrice4","OfferPrice5","OfferPrice6","OfferPrice7","OfferPrice8","OfferPrice9","OfferOrderQty0","OfferOrderQty1","OfferOrderQty2","OfferOrderQty3","OfferOrderQty4","OfferOrderQty5","OfferOrderQty6","OfferOrderQty7","OfferOrderQty8","OfferOrderQty9","OfferNumOrders0","OfferNumOrders1","OfferNumOrders2","OfferNumOrders3","OfferNumOrders4","OfferNumOrders5","OfferNumOrders6","OfferNumOrders7","OfferNumOrders8","OfferNumOrders9","OfferOrders0","OfferOrders1","OfferOrders2","OfferOrders3","OfferOrders4","OfferOrders5","OfferOrders6","OfferOrders7","OfferOrders8","OfferOrders9","OfferOrders10","OfferOrders11","OfferOrders12","OfferOrders13","OfferOrders14","OfferOrders15","OfferOrders16","OfferOrders17","OfferOrders18","OfferOrders19","OfferOrders20","OfferOrders21","OfferOrders22","OfferOrders23","OfferOrders24","OfferOrders25","OfferOrders26","OfferOrders27","OfferOrders28","OfferOrders29","OfferOrders30","OfferOrders31","OfferOrders32","OfferOrders33","OfferOrders34","OfferOrders35","OfferOrders36","OfferOrders37","OfferOrders38","OfferOrders39","OfferOrders40","OfferOrders41","OfferOrders42","OfferOrders43","OfferOrders44","OfferOrders45","OfferOrders46","OfferOrders47","OfferOrders48","OfferOrders49","NumTrades","IOPV","TotalBidQty","TotalOfferQty","WeightedAvgBidPx","WeightedAvgOfferPx","TotalBidNumber","TotalOfferNumber","BidTradeMaxDuration","OfferTradeMaxDuration","NumBidOrders","NumOfferOrders","WithdrawBuyNumber","WithdrawBuyAmount","WithdrawBuyMoney","WithdrawSellNumber","WithdrawSellAmount","WithdrawSellMoney","ETFBuyNumber","ETFBuyAmount","ETFBuyMoney","ETFSellNumber","ETFSellAmount","ETFSellMoney"]
  	colType = ["SYMBOL","TIMESTAMP","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","INT","DOUBLE","SYMBOL","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","INT","DOUBLE","DOUBLE","INT","INT","INT","INT","INT","INT","INT","INT","DOUBLE","INT","INT","DOUBLE","INT","INT","INT","INT","INT","INT"]
  	schemaTable = table(1:0,colName, colType)

  	db.createPartitionedTable(table=schemaTable, tableName=tbName, partitionColumns=`DateTime`SecurityID, compressMethods={DateTime:"delta"}, sortColumns=`SecurityID`DateTime, keepDuplicates=ALL)
  }

  对于 snapshot 数据，本文采用的数据库分区方案是组合分区，第一层按天分区，第二层对股票代码按 HASH 分50个分区。如何根据数据确定分区方案可参考 DolphinDB 分区数据库教程。

• 创建清洗后 snapshot 数据存储表：

  创建清洗后以 Array 格式存储 snapshot 数据的库表，核心代码如下：

  module processSnapshot::createSnapshot_array

  //创建清洗后的 snapshot 数据存储表
  def createProcessTable(dbName, tbName){
  	if(existsDatabase(dbName)){
  		dropDatabase(dbName)
  	}
  	db1 = database(, VALUE, 2020.01.01..2021.01.01)
  	db2 = database(, HASH, [SYMBOL, 50])
  	//按天和股票代码组合分区
  	db = database(dbName,COMPO,[db1,db2],engine='TSDB')
  	colName = ["SecurityID","DateTime","PreClosePx","OpenPx","HighPx","LowPx","LastPx","TotalVolumeTrade","TotalValueTrade","InstrumentStatus","BidPrice","BidOrderQty","BidNumOrders","BidOrders","OfferPrice","OfferOrderQty","OfferNumOrders","OfferOrders","NumTrades","IOPV","TotalBidQty","TotalOfferQty","WeightedAvgBidPx","WeightedAvgOfferPx","TotalBidNumber","TotalOfferNumber","BidTradeMaxDuration","OfferTradeMaxDuration","NumBidOrders","NumOfferOrders","WithdrawBuyNumber","WithdrawBuyAmount","WithdrawBuyMoney","WithdrawSellNumber","WithdrawSellAmount","WithdrawSellMoney","ETFBuyNumber","ETFBuyAmount","ETFBuyMoney","ETFSellNumber","ETFSellAmount","ETFSellMoney"]
  	colType = ["SYMBOL","TIMESTAMP","DOUBLE","DOUBLE","DOUBLE","DOUBLE","DOUBLE","INT","DOUBLE","SYMBOL","DOUBLE[]","INT[]","INT[]","INT[]","DOUBLE[]","INT[]","INT[]","INT[]","INT","INT","INT","INT","DOUBLE","DOUBLE","INT","INT","INT","INT","INT","INT","INT","INT","DOUBLE","INT","INT","DOUBLE","INT","INT","INT","INT","INT","INT"]
  	schemaTable = table(1:0, colName, colType)
  	db.createPartitionedTable(table=schemaTable, tableName=tbName, partitionColumns=`DateTime`SecurityID, compressMethods={DateTime:"delta"}, sortColumns=`SecurityID`DateTime, keepDuplicates=ALL)
  }

• 创建 K 线结果存储表：

  创建分钟级 K 线结果存储表，核心代码如下：

  module Factor::createFactorOneMinute

  //创建分钟 k 线因子储存表
  def createFactorOneMinute(dbName, tbName){
  	if(existsDatabase(dbName)){
  		dropDatabase(dbName)
  	}
  	//按天分区
  	db = database(dbName, VALUE, 2021.01.01..2021.01.03,engine = `TSDB)
  	colName = `TradeDate`TradeTime`SecurityID`Open`High`Low`Close`Volume`Amount`Vwap
  	colType =[DATE, MINUTE, SYMBOL, DOUBLE, DOUBLE, DOUBLE, DOUBLE, LONG, DOUBLE, DOUBLE]
  	tbSchema = table(1:0, colName, colType)
    	db.createPartitionedTable(table=tbSchema,tableName=tbName,partitionColumns=`TradeDate,sortColumns=`SecurityID`TradeTime,keepDuplicates=ALL)
  }

  创建日级 K 线结果存储表，核心代码如下：

  module Factor::createFactorDaily

  //创建日 K 线储存表
  def createFactorDaily(dbName, tbName){
  	if(existsDatabase(dbName)){
  		dropDatabase(dbName)
  	}
  	//按年分区
  	db = database(dbName, RANGE, datetimeAdd(2000.01M,(0..50)*12, "M"),engine = `TSDB)
  	colName = `TradeDate`SecurityID`Open`High`Low`Close`Volume`Amount`Vwap
  	colType =[DATE, SYMBOL, DOUBLE, DOUBLE, DOUBLE, DOUBLE, LONG, DOUBLE, DOUBLE]
  	tbSchema = table(1:0, colName, colType)
    	db.createPartitionedTable(table=tbSchema,tableName=tbName,partitionColumns=`TradeDate,sortColumns=`SecurityID`TradeDate,keepDuplicates=ALL)
  }

本文将 snapshot 数据的清洗主要分为两个部分：

• 将多档价格、委托量以 Array 形式储存
• 数据去重

具体的处理流程及核心代码如下:

module processSnapshot::processSnapshotData

//将数据组合为 array、去重，并统计重复数据量
def mapProcess(mutable t, dbName, tbName){
	n1 = t.size()
	t = select SecurityID, DateTime, PreClosePx, OpenPx, HighPx, LowPx, LastPx, TotalVolumeTrade, TotalValueTrade, InstrumentStatus, fixedLengthArrayVector(BidPrice0, BidPrice1, BidPrice2, BidPrice3, BidPrice4, BidPrice5, BidPrice6, BidPrice7, BidPrice8, BidPrice9) as BidPrice, fixedLengthArrayVector(BidOrderQty0, BidOrderQty1, BidOrderQty2, BidOrderQty3, BidOrderQty4, BidOrderQty5, BidOrderQty6, BidOrderQty7, BidOrderQty8, BidOrderQty9) as BidOrderQty, fixedLengthArrayVector(BidNumOrders0, BidNumOrders1, BidNumOrders2, BidNumOrders3, BidNumOrders4, BidNumOrders5, BidNumOrders6, BidNumOrders7, BidNumOrders8, BidNumOrders9) as BidNumOrders, fixedLengthArrayVector(BidOrders0, BidOrders1, BidOrders2, BidOrders3, BidOrders4, BidOrders5, BidOrders6, BidOrders7, BidOrders8, BidOrders9, BidOrders10, BidOrders11, BidOrders12, BidOrders13, BidOrders14, BidOrders15, BidOrders16, BidOrders17, BidOrders18, BidOrders19, BidOrders20, BidOrders21, BidOrders22, BidOrders23, BidOrders24, BidOrders25, BidOrders26, BidOrders27, BidOrders28, BidOrders29, BidOrders30, BidOrders31, BidOrders32, BidOrders33, BidOrders34, BidOrders35, BidOrders36, BidOrders37, BidOrders38, BidOrders39, BidOrders40, BidOrders41, BidOrders42, BidOrders43, BidOrders44, BidOrders45, BidOrders46, BidOrders47, BidOrders48, BidOrders49) as BidOrders, fixedLengthArrayVector(OfferPrice0, OfferPrice1, OfferPrice2, OfferPrice3, OfferPrice4, OfferPrice5, OfferPrice6, OfferPrice7, OfferPrice8, OfferPrice9) as OfferPrice, fixedLengthArrayVector(OfferOrderQty0, OfferOrderQty1, OfferOrderQty2, OfferOrderQty3, OfferOrderQty4, OfferOrderQty5, OfferOrderQty6, OfferOrderQty7, OfferOrderQty8, OfferOrderQty9) as OfferQty, fixedLengthArrayVector(OfferNumOrders0, OfferNumOrders1, OfferNumOrders2, OfferNumOrders3, OfferNumOrders4, OfferNumOrders5, OfferNumOrders6, OfferNumOrders7, OfferNumOrders8, OfferNumOrders9) as OfferNumOrders, fixedLengthArrayVector(OfferOrders0, OfferOrders1, OfferOrders2, OfferOrders3, OfferOrders4, OfferOrders5, OfferOrders6, OfferOrders7, OfferOrders8, OfferOrders9, OfferOrders10, OfferOrders11, OfferOrders12, OfferOrders13, OfferOrders14, OfferOrders15, OfferOrders16, OfferOrders17, OfferOrders18, OfferOrders19, OfferOrders20, OfferOrders21, OfferOrders22, OfferOrders23, OfferOrders24, OfferOrders25, OfferOrders26, OfferOrders27, OfferOrders28, OfferOrders29, OfferOrders30, OfferOrders31, OfferOrders32, OfferOrders33, OfferOrders34, OfferOrders35, OfferOrders36, OfferOrders37, OfferOrders38, OfferOrders39, OfferOrders40, OfferOrders41, OfferOrders42, OfferOrders43, OfferOrders44, OfferOrders45, OfferOrders46, OfferOrders47, OfferOrders48, OfferOrders49) as OfferOrders, NumTrades, IOPV, TotalBidQty, TotalOfferQty, WeightedAvgBidPx, WeightedAvgOfferPx, TotalBidNumber, TotalOfferNumber, BidTradeMaxDuration, OfferTradeMaxDuration, NumBidOrders, NumOfferOrders, WithdrawBuyNumber, WithdrawBuyAmount, WithdrawBuyMoney, WithdrawSellNumber, WithdrawSellAmount, WithdrawSellMoney, ETFBuyNumber, ETFBuyAmount, ETFBuyMoney, ETFSellNumber, ETFSellAmount, ETFSellMoney from t where isDuplicated([SecurityID, DateTime], FIRST) = false
	n2 = t.size()
	loadTable(dbName, tbName).append!(t)
	return n1,n2
}

def process(processDate, dbName_orig, tbName_orig, dbName_process, tbName_process){
	dataString = temporalFormat(processDate, "yyyyMMdd")
	//查询处理日期的数据在数据库中是否存在
	todayCount = exec count(*) from loadTable(dbName_process, tbName_process) where date(DateTime)=processDate
	//如果库里面已经存在当天要处理的数据，删除库里面已有数据
	if(todayCount != 0){
		writeLog("Start to delete the process snapshot data, the delete date is: " + dataString)
		dropPartition(database(dbName_process), processDate, tbName_process)
		writeLog("Successfully deleted the process snapshot data, the delete date is: " + dataString)
	}
	//开始处理数据
	writeLog("Start process Snapshot Data, the datetime is "+ dataString)
	ds = sqlDS(sql(select=sqlCol("*"), from=loadTable(dbName_orig,tbName_orig),where=<date(DateTime)=processDate>))
	n1,n2=mr(ds, mapProcess{, dbName_process, tbName_process}, +, , false)
	if(n1 != n2){
		writeLog("ERROR: Duplicated datas exists in " + dataString + ", Successfully drop " + string(n1-n2) + " pieces of data" )
	}
	writeLog("Successfully process the snapshot data, the processDate is: " + dataString)
}

分钟级 K 线合成并入库, 核心代码如下：

module Factor::calFactorOneMinute

//合成分钟 K 线并入库
def calFactorOneMinute(dbName, tbName, mutable factorTable){
	pt = loadTable(dbName, tbName)
	//将数据分为10天一组计算
	dayList = schema(pt).partitionSchema[0]
	if(dayList.size()>10) dayList = dayList.cut(10)
	for(days in dayList){
		//计算分钟 K 线
		res =   select first(LastPX) as Open, max(LastPx) as High, min(LastPx) as Low, last(LastPx) as Close, sum(TotalVolumeTrade) as Volume, sum(LastPx*totalVolumeTrade) as Amount, wavg(LastPx, TotalVolumeTrade) as Vwap from pt where date(DateTime) in days group by date(DateTime) as TradeDate,minute(DateTime) as TradeTime, SecurityID
		writeLog("Start to append minute factor result , the days is: [" + concat(days, ",")+"]")
		//分钟 K 线入库
		factorTable.append!(res)
		writeLog("Successfully append the minute factor result to databse, the days is: [" + concat(days, ",")+"]")
	}
}

日级 K 线合成并入库, 核心代码如下：

module Factor::calFactorDaily1

//合成日 K 线并入库
def calFactorDaily(dbName, tbName, mutable factorTable){
	pt = loadTable(dbName, tbName)
	//将数据分为10天一组计算
	dayList = schema(pt).partitionSchema[0]
	if(dayList.size()>10) dayList = dayList.cut(10)
	for(days in dayList){
		//计算日 K 线
		res =   select first(LastPX) as Open, max(LastPx) as High, min(LastPx) as Low, last(LastPx) as Close, sum(TotalVolumeTrade) as Volume, sum(LastPx*totalVolumeTrade) as Amount, wavg(LastPx, TotalVolumeTrade) as Vwap from pt where date(DateTime) in days group by date(DateTime) as TradeDate, SecurityID
		writeLog("Start to append daily factor result , the days is: [" + concat(days, ",")+"]")
		//日 K 线入库
		factorTable.append!(res)
		writeLog("Successfully append the daily factor result to databse, the days is: [" + concat(days, ",")+"]")
	}
}

生成全量 DAG 实例的示例如下：

with DAG(dag_id="ETLTest", start_date=datetime(2023, 3, 10), schedule_interval=None) as dag:

dag_id 指定了 DAG 名称，需要具有唯一性；start_date 设定任务开始日期；schedule_interval 指定两次任务的间隔；None 表示该任务不自动执行需手动触发。 增量 DAG 示例如下：

args = {
    "owner" : "Airflow",
    "start_date" : days_ago(1),
    "catchup" : False,
    'retries' : 0
}
with DAG(dag_id="addETLTest", default_args = args, schedule_interval="0 12 * * *") as dag:

增量 DAG 中 catchup 表示是否进行回填任务操作，retries 表示任务失败重试次数，schedule_interval = “0 12 * * * ” 表示在每天12点 (UTC) 运行任务。schedule 设置详细可参考：Scheduling & Triggers

Airflow 中设定的变量值，无法直接在 DolphinDB 脚本中获取，为了在后续的任务中使用，本文通过将 Airflow 中变量写入共享表的方式，来实现后续在 DolphinDB 任务读取变量，具体代码示例如下：

//获取变量值
variable = ['ETL_dbName_origin', "ETL_tbName_origin", "ETL_dbName_process",
            "ETL_tbName_process", 'ETL_dbName_factor','ETL_tbName_factor','ETL_dbName_factor_daily',
            'ETL_tbName_factor_daily',"ETL_filedir", "ETL_start_date","ETL_end_date"]
value = []
for var in variable:
    value.append(str(Variable.get(var)))
variables = ",".join(variable)
values = ",".join(value)

//通过DolphinDBOperator创建共享表，并将变量值写入共享表中
  create_parameter_table = DolphinDBOperator(
        task_id='create_parameter_table',
        dolphindb_conn_id='dolphindb_test',
        sql='''
            undef(`paramTable,SHARED)
            t = table(1:0, `param`value, [STRING, STRING])
            share t as paramTable
            '''
    )
    given_param = DolphinDBOperator(
        task_id='given_param',
        dolphindb_conn_id='dolphindb_test',
        sql="params = split('" + variables + "',',');" + \
            "values = split('" + values + "',',');" + \
            "for(i in 0..(params.size()-1)){" + \
            "insert into paramTable values(params[i], values[i]);}"
    )

运行该任务后可在 DolphinDB GUI 共享变量栏中看到参数表及其值，如下图所示：

每个 DAG 变量的值可以通过 AirFlow 进行修改，点击下图所示位置：

DAG 生成后，在如下 Web 页面显示 DAG 使用的变量可以动态修改，如下所示：

下表为本项目中涉及的变量名称及其含义：

• DolphinDBOperator 全量处理数据

  通过 DolphinDBOperator 将上述的数据入库、清洗、计算等设置为 DAG 中的任务

  全量处理核心代码如下：

     loadSnapshot = DolphinDBOperator(
          task_id='loadSnapshot',
          dolphindb_conn_id='dolphindb_test',
          sql='''
              pnodeRun(clearAllCache)
              undef(all)
              go;
              //使用 module，加载已封装好的建表及入库函数
              use loadSnapshot::createSnapshotTable
              use  loadSnapshot::loadSnapshotData
              //通过参数共享表获取参数
              params = dict(paramTable[`param], paramTable[`value])
              dbName = params[`ETL_dbName_origin]
              tbName = params[`ETL_tbName_origin]
              startDate = date(params[`ETL_start_date])
              endDate = date(params[`ETL_end_date])
              fileDir = params[`ETL_filedir]
              //结果库表不存在则创建
              if(not existsDatabase(dbName)){
                  loadSnapshot::createSnapshotTable::createSnapshot(dbName, tbName)
              }
              //调用清洗函数，后台多进程写入，提高写入效率
              start = now()
              for (loadDate in startDate..endDate){
                  submitJob("loadSnapshot"+year(loadDate)+monthOfYear(loadDate)+dayOfMonth(loadDate), "loadSnapshot", loadSnapshot::loadSnapshotData::loadSnapshot{, dbName, tbName, fileDir}, loadDate)
              }
              //查看写入任务是否完成，以保证后续处理部分数据源完整
              do{
                  cnt = exec count(*) from getRecentJobs() where jobDesc="loadSnapshot" and endTime is null
              }
              while(cnt != 0)
              //查看导入过程中是否有异常，有异常则抛出异常
              cnt = exec count(*) from pnodeRun(getRecentJobs) where jobDesc="loadSnapshot" and errorMsg is not null and receivedTime > start
              if (cnt != 0){
                  error = exec errorMsg from pnodeRun(getRecentJobs) where jobDesc="loadSnapshot" and errorMsg is not null and receivedTime > start
                  throw error[0]
              }
              '''
      )
      processSnapshot = DolphinDBOperator(
          task_id='processSnapshot',
          dolphindb_conn_id='dolphindb_test',
          sql='''
              pnodeRun(clearAllCache)
              undef(all)
              go;
              //使用 module，加载已封装好的建表及入库函数
              use processSnapshot::createSnapshot_array
              use processSnapshot::processSnapshotData
              //通过参数共享表获取参数
              params = dict(paramTable[`param], paramTable[`value])
              dbName_orig = params[`ETL_dbName_origin]
              tbName_orig = params[`ETL_tbName_origin]
              dbName_process = params[`ETL_dbName_process]
              tbName_process = params[`ETL_tbName_process]
              startDate = date(params[`ETL_start_date])
              endDate = date(params[`ETL_end_date])
              //结果库表不存在则创建
              if(not existsDatabase(dbName_process)){
                  processSnapshot::createSnapshot_array::createProcessTable(dbName_process, tbName_process)
              }
              //后台多进程处理，提高处理效率
              start = now()
              for (processDate in startDate..endDate){
                  submitJob("processSnapshot"+year(processDate)+monthOfYear(processDate)+dayOfMonth(processDate), "processSnapshot", processSnapshot::processSnapshotData::process{, dbName_orig, tbName_orig, dbName_process, tbName_process}, processDate)
              }
              //查看清洗任务是否完成，以保证后续处理部分数据源完整
              do{
                  cnt = exec count(*) from getRecentJobs() where jobDesc="processSnapshot" and endTime is null
              }
              while(cnt != 0)
              //查看清洗过程中是否有异常，有异常则抛出异常
              cnt = exec count(*) from pnodeRun(getRecentJobs) where jobDesc="processSnapshot" and errorMsg is not null and receivedTime > start
              if (cnt != 0){
                  error = exec errorMsg from pnodeRun(getRecentJobs) where jobDesc="processSnapshot" and errorMsg is not null and receivedTime > start
                  throw error[0]
              }
              '''
      )
      calMinuteFactor = DolphinDBOperator(
          task_id='calMinuteFactor',
          dolphindb_conn_id='dolphindb_test',
          sql='''
              pnodeRun(clearAllCache)
              undef(all)
              go;
              //使用 module，加载已封装好的建表及入库函数
              use Factor::createFactorOneMinute
              use Factor::calFactorOneMinute
              //通过参数共享表获取参数
              params = dict(paramTable[`param], paramTable[`value])
              dbName = params[`ETL_dbName_process]
              tbName = params[`ETL_tbName_process]
              dbName_factor = params[`ETL_dbName_factor]
              tbName_factor = params[`ETL_tbName_factor]
              //结果库表不存在则创建
              if(not existsDatabase(dbName_factor)){
                  createFactorOneMinute(dbName_factor, tbName_factor)
              }
              factorTable = loadTable(dbName_factor, tbName_factor)
              //调用计算函数
              calFactorOneMinute(dbName, tbName,factorTable)
              '''
      )
      calDailyFactor = DolphinDBOperator(
          task_id='calDailyFactor',
          dolphindb_conn_id='dolphindb_test',
          sql='''
              pnodeRun(clearAllCache)
              undef(all)
              go;
              //使用 module，加载已封装好的建表及入库函数
              use Factor::createFactorDaily
              use Factor::calFactorDaily1
              //通过参数共享表获取参数
              params = dict(paramTable[`param], paramTable[`value])
              dbName = params[`ETL_dbName_process]
              tbName = params[`ETL_tbName_process]
              dbName_factor = params[`ETL_dbName_factor_daily]
              tbName_factor = params[`ETL_tbName_factor_daily]
              //结果库表不存在则创建
              if(not existsDatabase(dbName_factor)){
                  createFactorDaily(dbName_factor, tbName_factor)
              }
              //调用计算函数
              factorTable = loadTable(dbName_factor, tbName_factor)
              Factor::calFactorDaily1::calFactorDaily(dbName, tbName,factorTable)
              '''
      )

  根据任务间的依赖关系，构建 DAG，示例如下：

      start_task >> create_parameter_table >> given_param >> loadSnapshot >> processSnapshot >> calMinuteFactor >> calDailyFactor

• DolphinDBOperator 增量数据入库

  增量数据任务构建代码如下：

  addLoadSnapshot = DolphinDBOperator(
          task_id='addLoadSnapshot',
          dolphindb_conn_id='dolphindb_test',
          sql='''
              pnodeRun(clearAllCache)
              undef(all)
              go;
              //使用module，加载已封装好的入库函数
              use  addLoadSnapshot::loadSnapshotData
              //通过参数共享表获取参数
              params = dict(paramTable[`param], paramTable[`value])
              dbName = params[`ETL_dbName_origin]
              tbName = params[`ETL_tbName_origin]
              fileDir = params[`ETL_filedir]
              //获取交易日历
              MarketDays = getMarketCalendar("CFFEX")
              //是交易日则进行数据入库
              if(today() in MarketDays ){
                  fileDir = params[`ETL_filedir]
                  addLoadSnapshot::loadSnapshotData::loadSnapshot(today(), dbName, tbName, fileDir)
              }
              '''
      )
      addProcessSnapshot = DolphinDBOperator(
          task_id='addProcessSnapshot',
          dolphindb_conn_id='dolphindb_test',
          sql='''
              pnodeRun(clearAllCache)
              undef(all)
              go;
              //使用module，加载已封装好的清洗函数
              use addProcessSnapshot::processSnapshotData
              //通过参数共享表获取参数
              params = dict(paramTable[`param], paramTable[`value])
              dbName_orig = params[`ETL_dbName_origin]
              tbName_orig = params[`ETL_tbName_origin]
              dbName_process = params[`ETL_dbName_process]
              tbName_process = params[`ETL_tbName_process]
              //获取交易日历
              MarketDays = getMarketCalendar("CFFEX")
              //是交易日则进行数据处理
              if(today() in MarketDays ){
                  addProcessSnapshot::processSnapshotData::process(today(), dbName_orig, tbName_orig, dbName_process, tbName_process)
              }
              '''
      )
      addCalMinuteFactor= DolphinDBOperator(
          task_id='addCalMinuteFactor',
          dolphindb_conn_id='dolphindb_test',
          sql='''
              pnodeRun(clearAllCache)
              undef(all)
              go;
              //使用module，加载已封装好的计算函数
              use addFactor::calFactorOneMinute
              //通过参数共享表获取参数
              params = dict(paramTable[`param], paramTable[`value])
              dbName = params[`ETL_dbName_process]
              tbName = params[`ETL_tbName_process]
              dbName_factor = params[`ETL_dbName_factor]
              tbName_factor = params[`ETL_tbName_factor]
              factorTable = loadTable(dbName_factor, tbName_factor)
              //获取交易日历
              MarketDays = getMarketCalendar("CFFEX")
              //是交易日则调用计算函数合成分钟K线
              if(today() in MarketDays ){
                  	addFactor::calFactorOneMinute::calFactorOneMinute(dbName, tbName,today(), factorTable)
              }
              '''
      )
      addCalDailyFactor= DolphinDBOperator(
          task_id='addCalDailyFactor',
          dolphindb_conn_id='dolphindb_test',
          sql='''
              pnodeRun(clearAllCache)
              undef(all)
              go;
              //使用module，加载已封装好的计算函数
              use addFactor::calFactorDaily1
              //通过参数共享表获取参数
              params = dict(paramTable[`param], paramTable[`value])
              dbName = params[`ETL_dbName_process]
              tbName = params[`ETL_tbName_process]
              dbName_factor = params[`ETL_dbName_factor_daily]
              tbName_factor = params[`ETL_tbName_factor_daily]
              factorTable = loadTable(dbName_factor, tbName_factor)
              //获取交易日历
              MarketDays = getMarketCalendar("CFFEX")
              //是交易日则调用计算函数合成日K线
              if(today() in MarketDays ){
                  addFactor::calFactorDaily1::calFactorDaily(dbName, tbName,today(), factorTable)
              }
              '''
      )

  根据任务间的依赖关系，构建 DAG，示例如下：

      start_task >> create_parameter_table >> given_param >> addLoadSnapshot >> addProcessSnapshot >> addCalMinuteFactor >> addCalDailyFactor

根据如下步骤部署项目：

• 第一步 DolphinDB 项目部署

  将 DolphinDB 项目中的 addETL 和 fullETL 项目分别导入 DolphinDB GUI (DolphinDB 客户端工具)中：

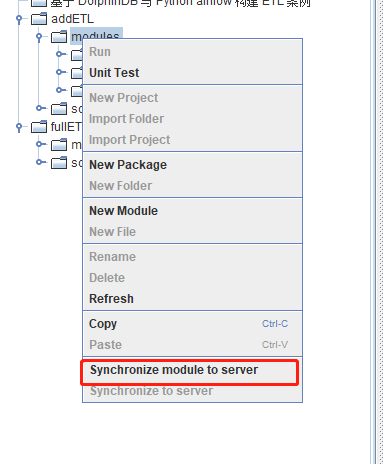

  将 addETL 及 fullETL 项目中的 module 模块上传至 Airflow 中已建立连接的 DolphinDB server 中：




• 第二步 python 项目部署

  将 python 项目中的 python 脚本放置到 <Airflow_install_Dir/airflow/dags> 目录下。注意，新建的 DAG 任务并不会马上出现在界面上，默认需要等待5分钟后刷新，也可修改 airflow.cfg 文件中的 dag_dir_list_interval 调整刷新间隔。

• 第三步 Airflow 变量导入

  在 Airflow 网页中进入 Admin-->Variables，将 Variables.json 文件上传，将变量导入 Airflow 中，并根据实际情况调整变量值。




• 第四步 上传原始数据文件

  将数据文件上传至服务器，并根据数据文件的实际存放路径，在 Airflow 中修改 ETL_filedir 变量。如运行增量 ETL 任务，需要将数据文件名中的日期改为当前日期，如：20230330snapshot.csv，以避免无数据导致任务失败。

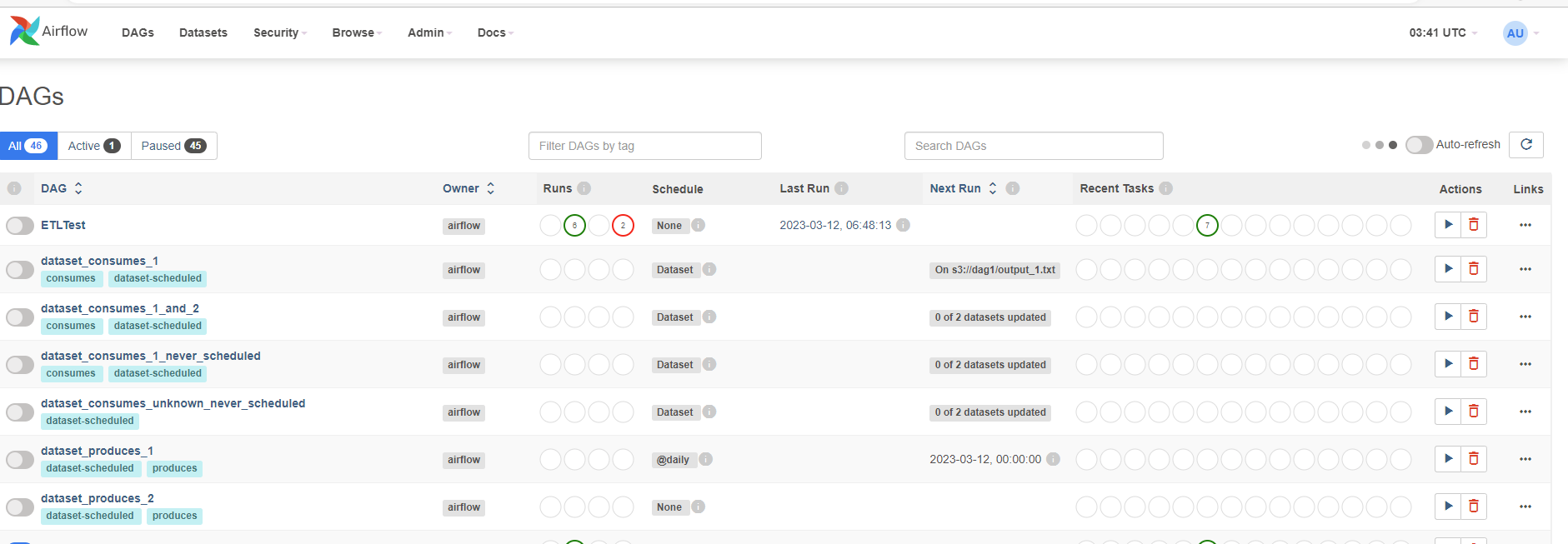

  最终实现 DAG 如下所示：

  全量数据入库：




  增量数据入库：




  运行任务后，任务实例为绿色代表任务运行成功；红色表示任务运行失败；橙色则表示该任务所依赖的上游任务运行失败，任务未启动。
